نام قطعه

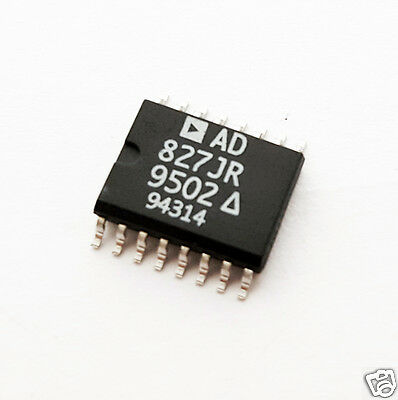

AD827JR
نام کارخانهای
AD827JR
برند
Analog Devices
پکیج
SO-16
بستهبندی
Tape & Reel
عنوان گروه
دیتاشیت
| Features | ||
|---|---|---|
| Mounting Style | SMD/SMT | |
| Supply Voltage (Max) | 18 V | |
| Supply Voltage (Min) | 4.5 V | |
| Input Voltage MAX | 4.3 V | |
| Slew Rate | 200 V/µs | |
| Input Bias Current | 8.2 uA | |
| Input Offset Voltage | 500 uV | |
| Power Dissipation | 1.5 W | |
| Operating Supply Voltage (Min) | 4.5 V | |
| Operating Supply Voltage (Max) | 18 V | |
| Voltage Gain | 70.88 dB | |
| Number of channels | 2 channel | |
| Power Supply Rejection Ratio (PSRR) | 86 dB | |
| Operating Supply Current | 10 mA | |
| Minimum Operating Temperature | -40 C ° | |
| Maximum Operating Temperature | +85 C ° | |
| Gain Bandwidth Product (fT) | 50 MHz | |
| Length | 10.5 (Max) mm | |
| Width | 7.6 (Max) mm | |
| Height | 2.35(Max) mm | |
| Brand | Analog Devices | |
| Package | SO-16 | |
موجود
یوان
5
457500 ریال
تحویل 35 روزه
